Innovation Realized

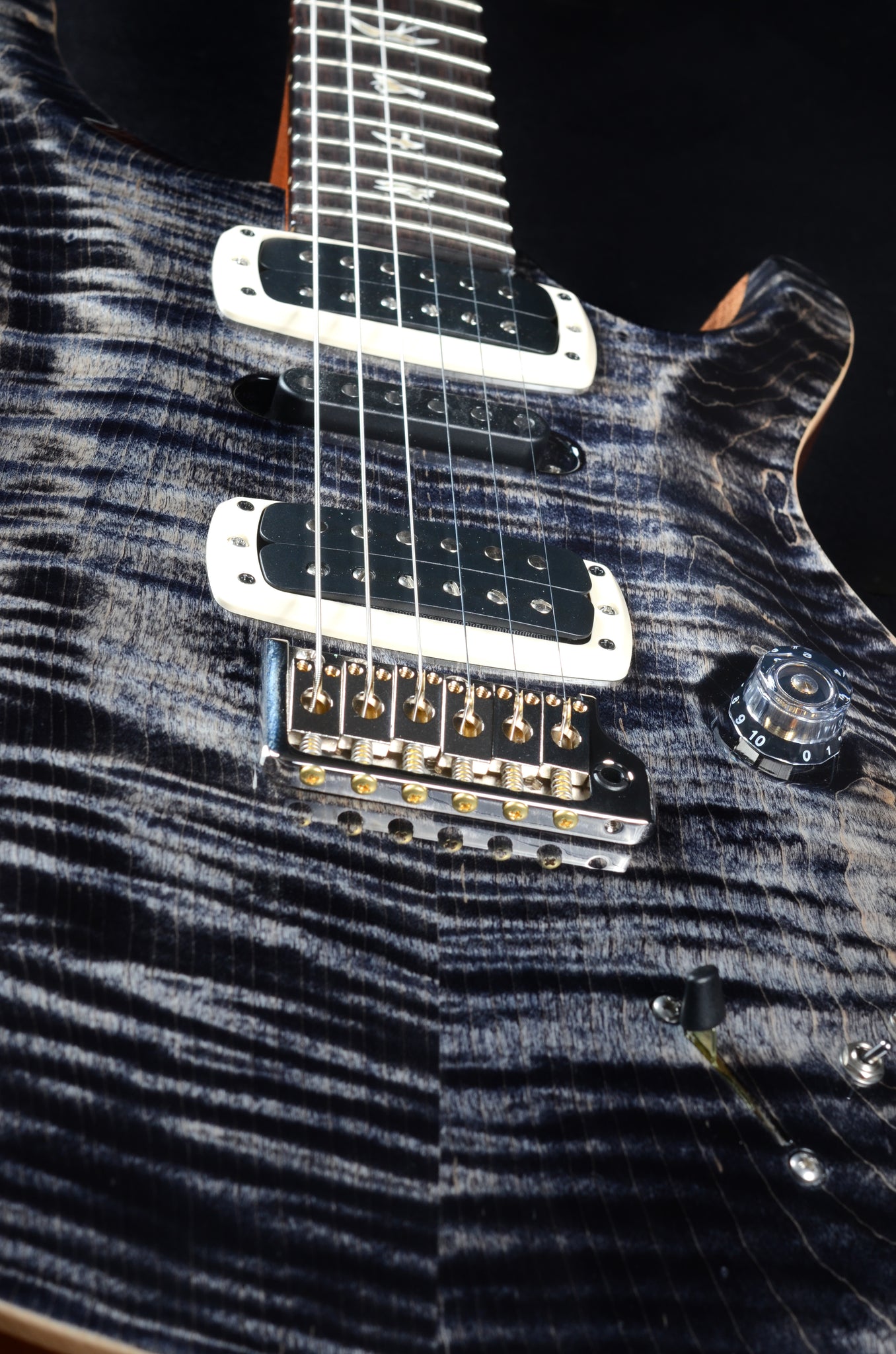

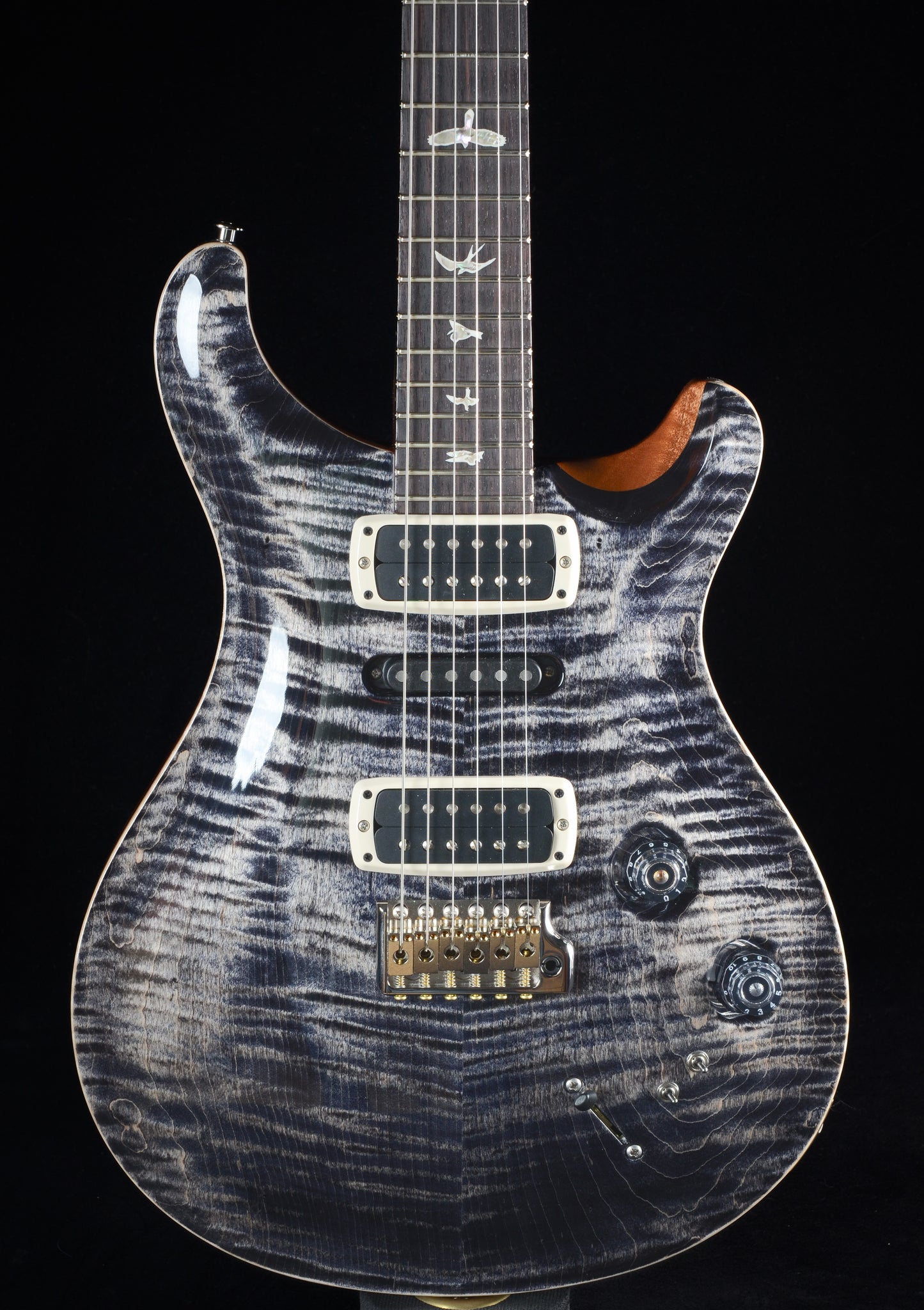

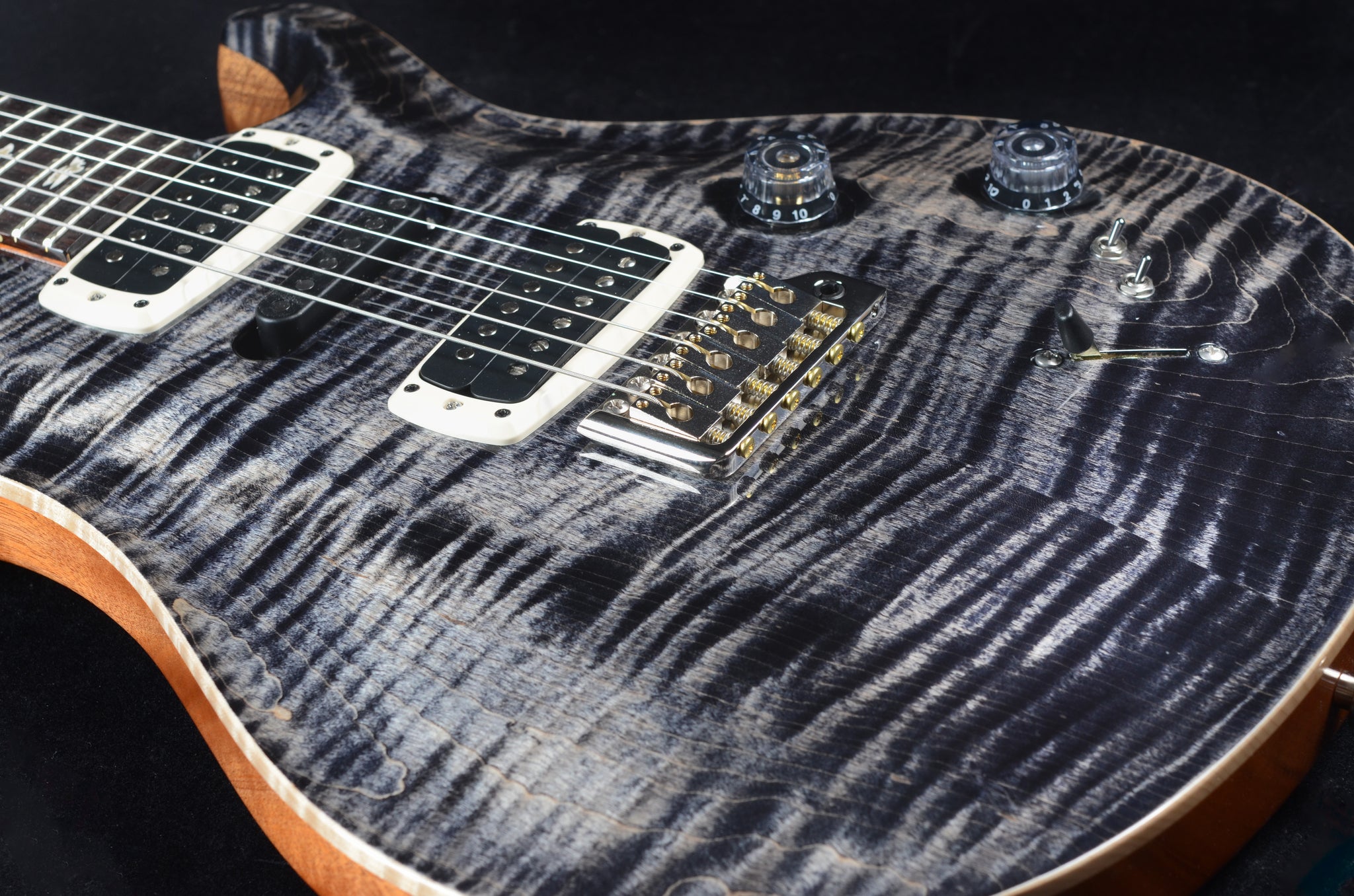

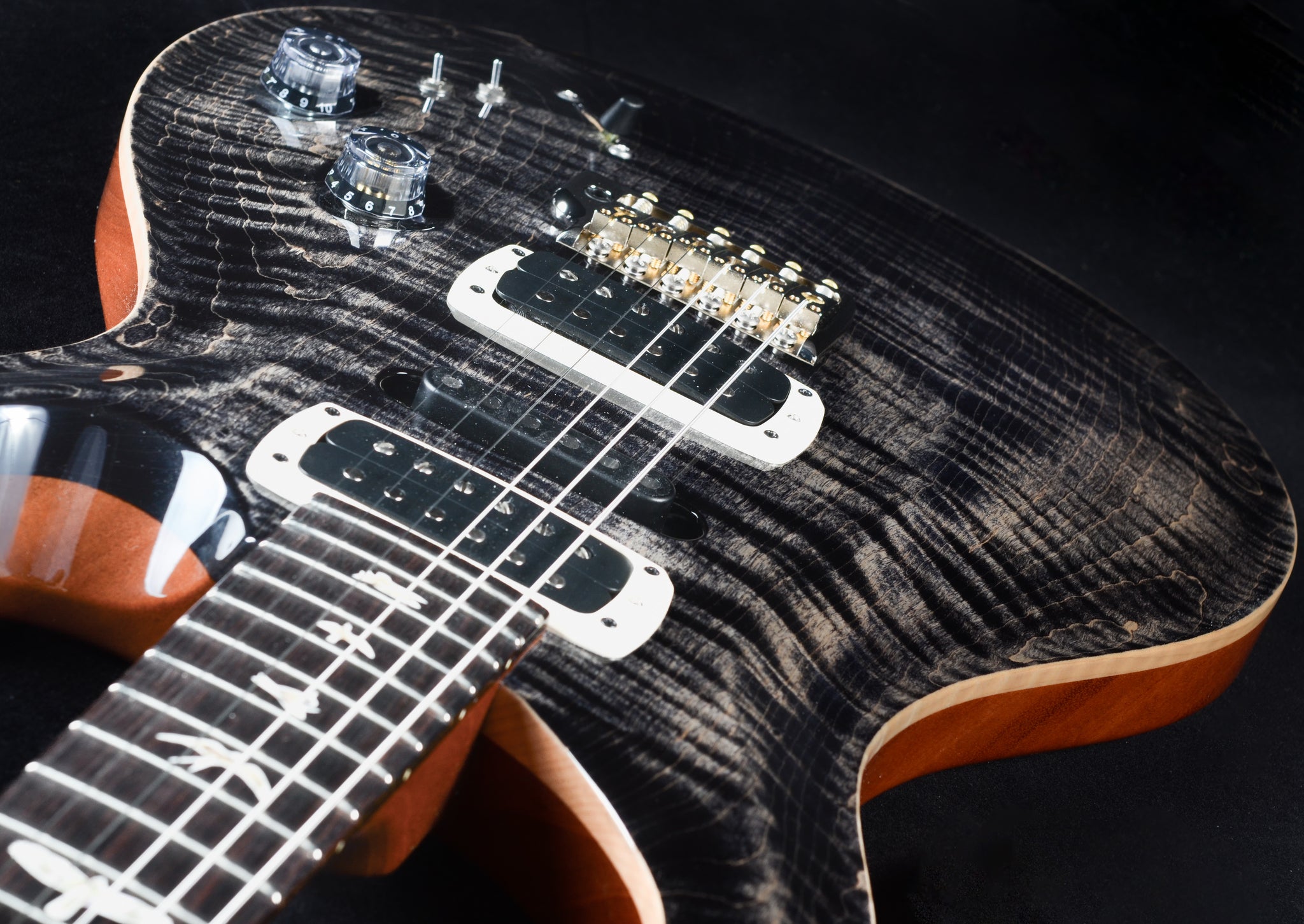

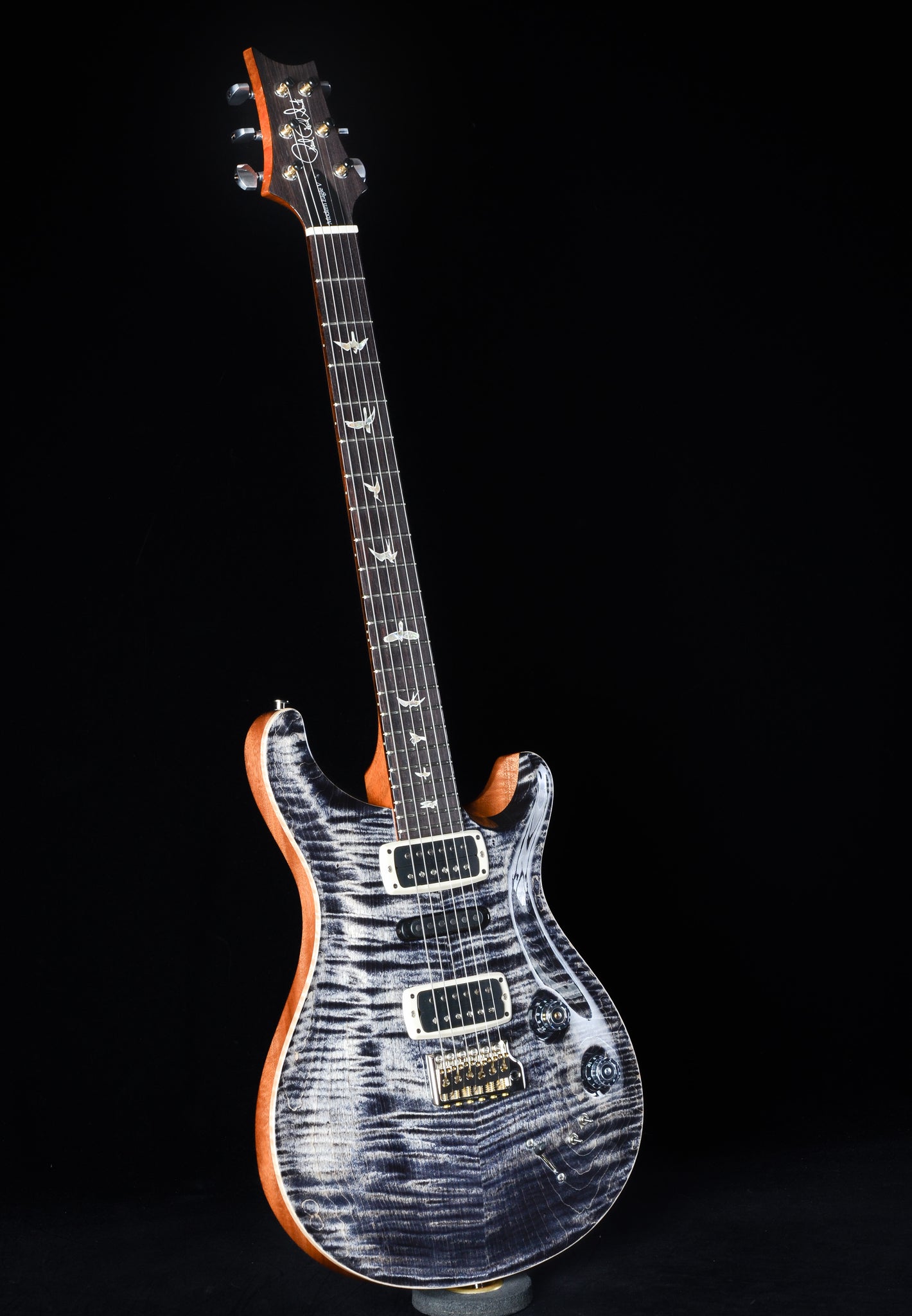

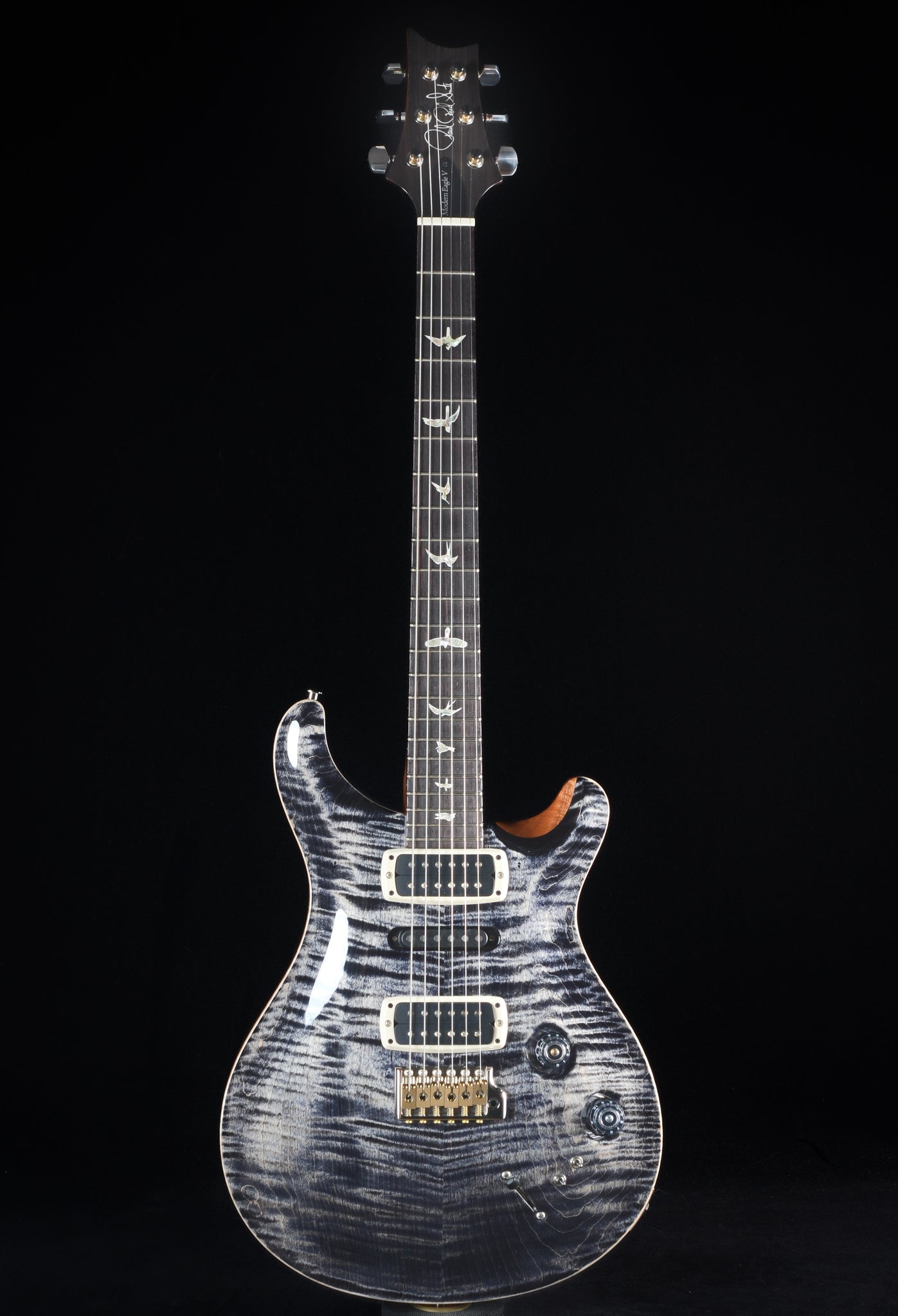

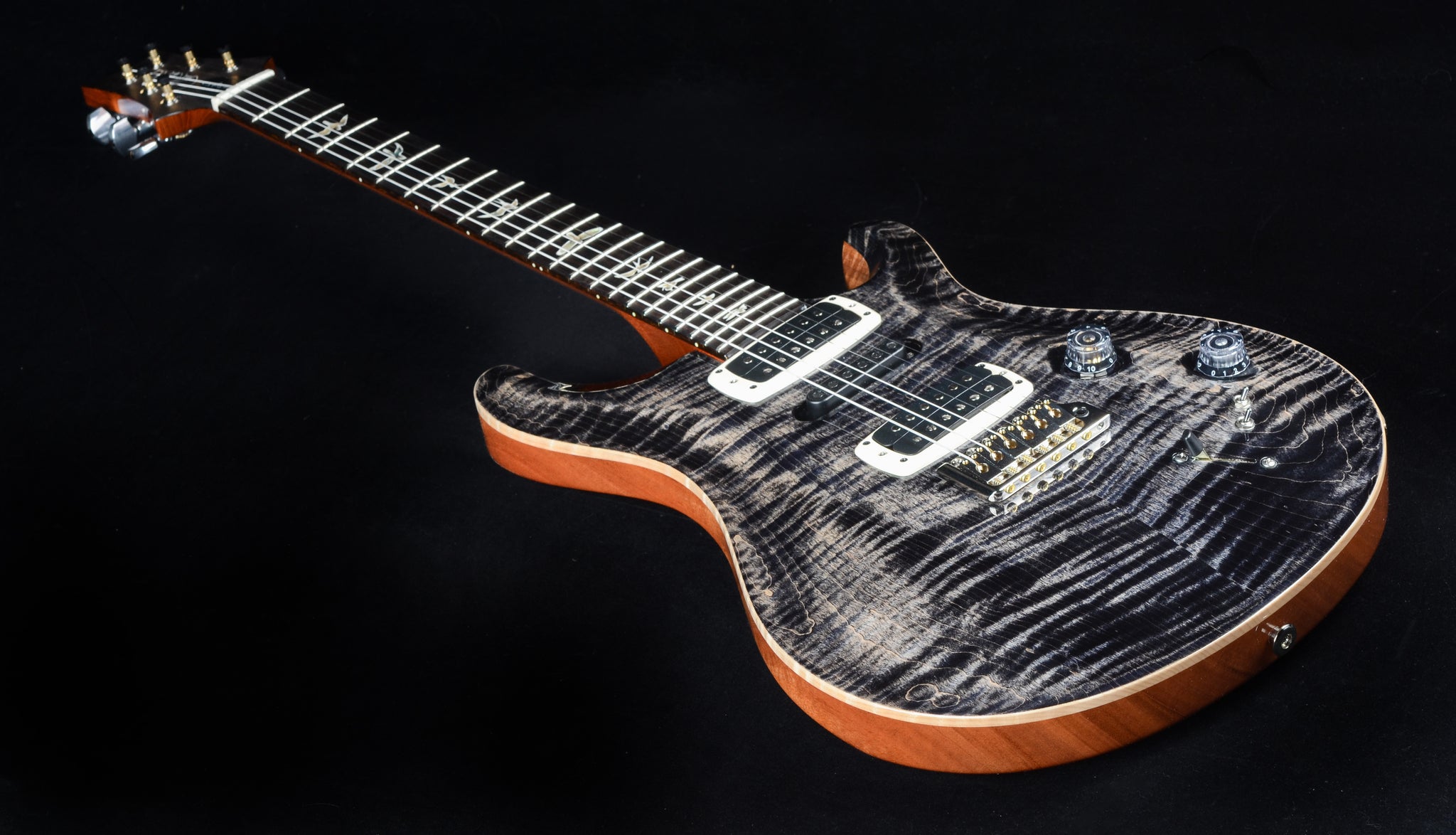

The Modern Eagle V is an innovative instrument that offers highly musical tones for both recording and playing live. Utilizing a hum/single/hum (five-coil) pickup layout and unique electronics configuration, the Modern Eagle V gives players a vast array of tones in one guitar. The 5-way blade switch selects the pickups in intuitive groupings: treble, treble and middle, middle, middle and bass, and bass. There is a single volume and a push/pull tone control that activates both humbuckers when engaged; this allows players to access all three pickups simultaneously. Finally, the mini toggles allow players to individually separate the humbucker coils, turning the outside pickups into true single coils. This electronics design puts a whole set of classic and new tones at your fingertips.

Additional appointments include a maple top and mahogany back, a 22 fret, 25” scale length, Pattern mahogany neck with rosewood fretboard, bone nut, and PRS patented Gen III tremolo.

“Modern Eagle models have always been built to stand up to history while celebrating tonewoods and the discovery of new tones. The Modern Eagle V is a sophisticated instrument not only in its craftsmanship but in its electronic and mechanical design,” said Paul Reed Smith. “We’ve refined the pickup tones and are pleased to now add it to the Core lineup.”

Specs:

• One of the best non-10 tops we've ever seen!
• Serial Number: 23 0364955
• Weight: 8.0 lbs
• Body Construction: Solidbody
• Top Wood: Maple

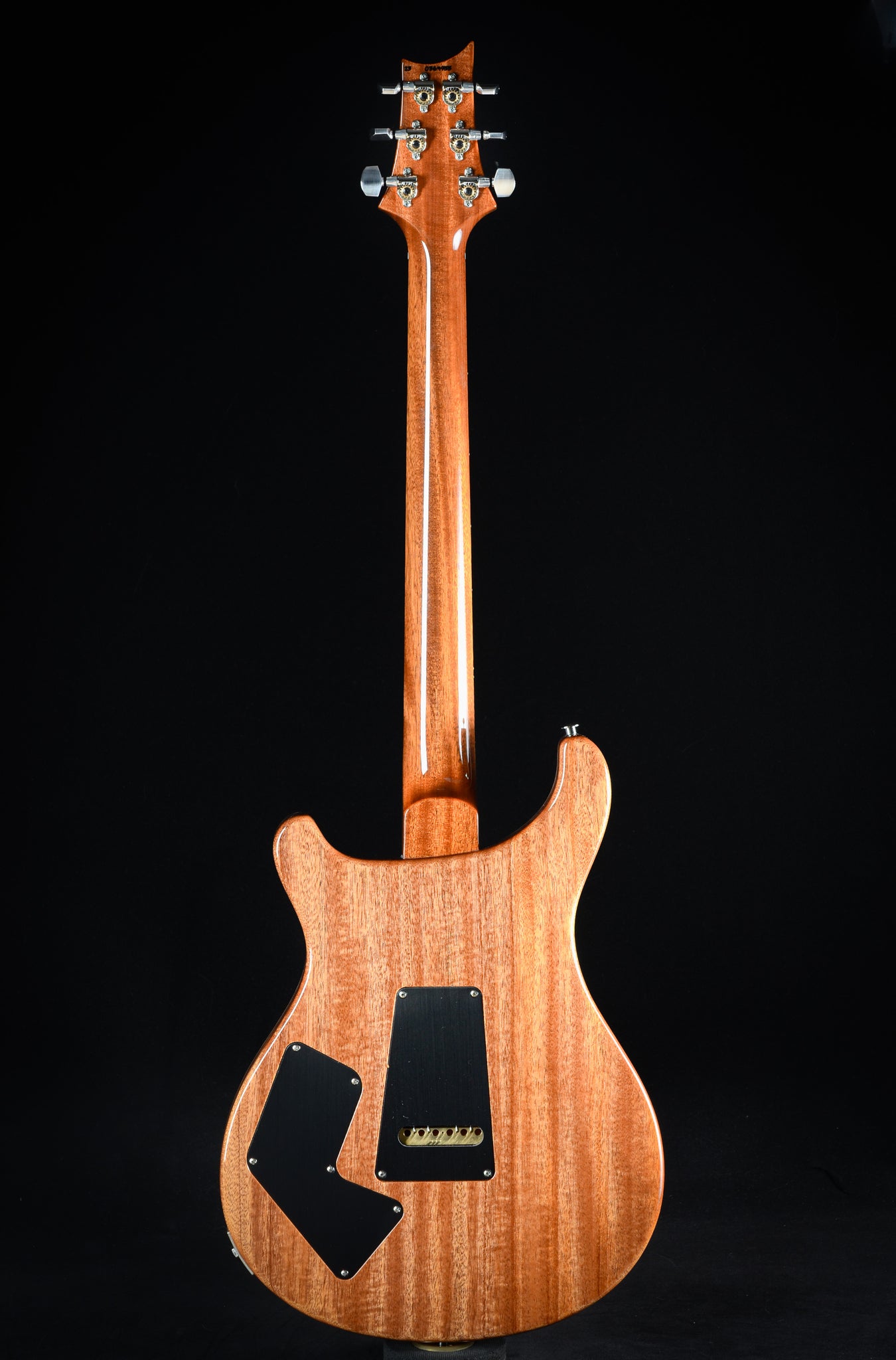

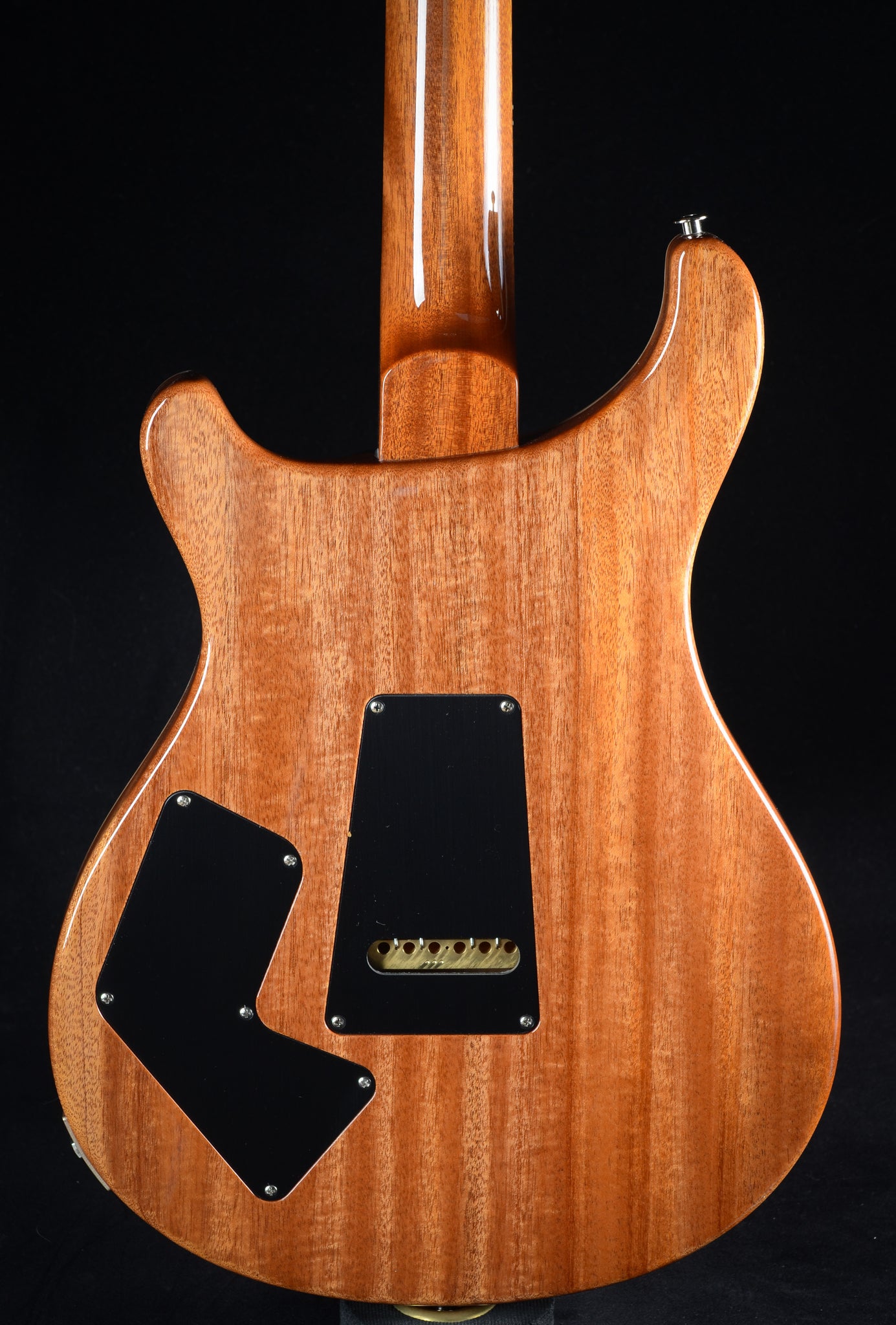

• Back Wood: Mahogany
• Top Carve: Violin
• Number of Frets: 22
• Scale Length: 25"
• Neck Wood Mahogany
• Neck Construction: One-Piece
• Truss Rod: PRS Double-Acting
• Neck Shape: Pattern
• Neck Depth At The 1/2 Fret: 7/8"
• Neck Width At The Nut: 1 11/16"
• Fretboard Wood Rosewood
• Fretboard Radius: 10"
• Fretboard Inlay: Birds

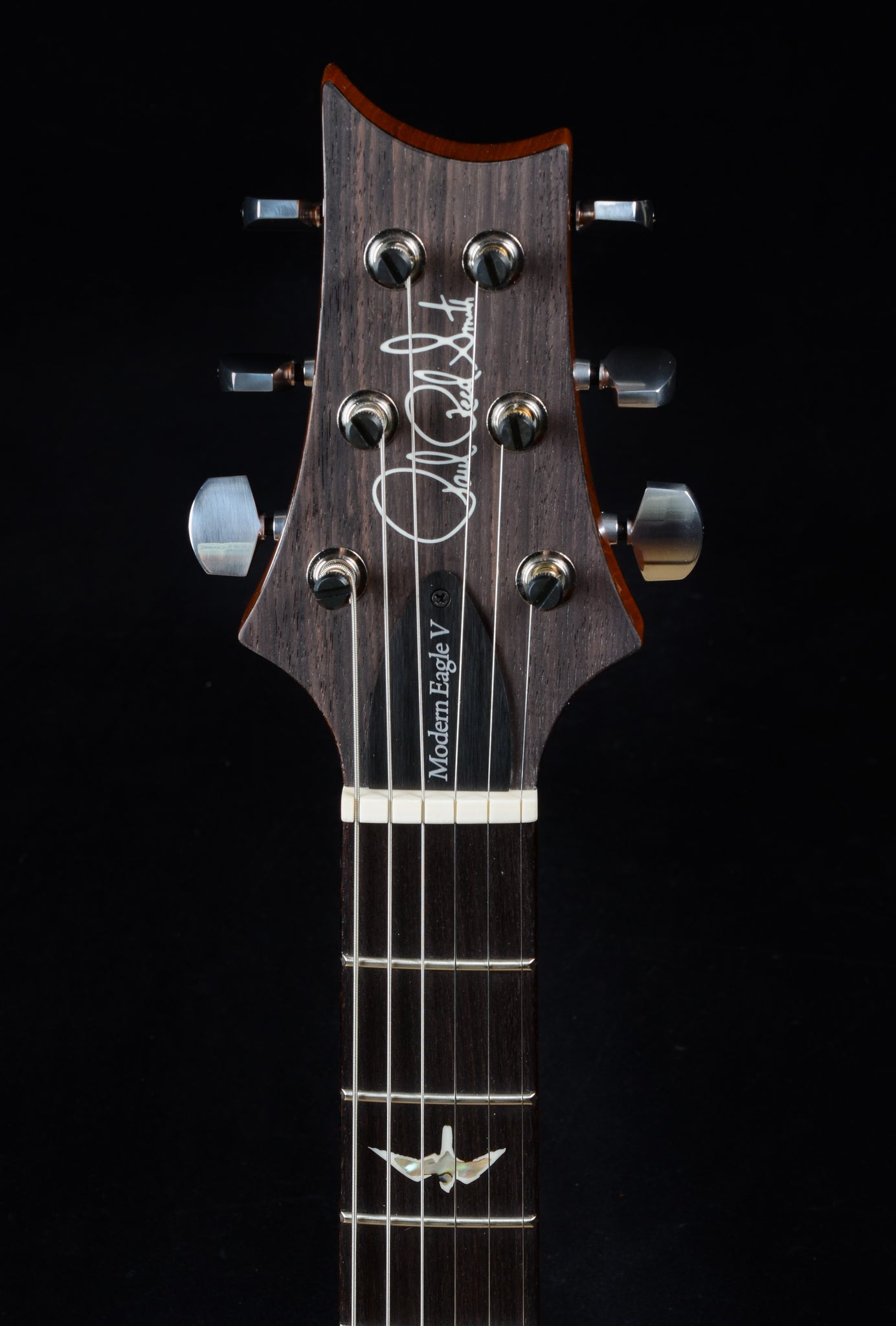

• Headstock Logo: Signature, Inlaid
• Neck/Body Assembly Type: Set
• Bridge: PRS Patented Tremolo, Gen III
• Tuners: PRS Phase III Locking
• Hardware Type: Nickel
• Nut: PRS
• Truss Rod Cover: "Modern Eagle V"
• Treble Pickup: TCI
• Middle Pickup: NS-01
• Bass Pickup: TCI

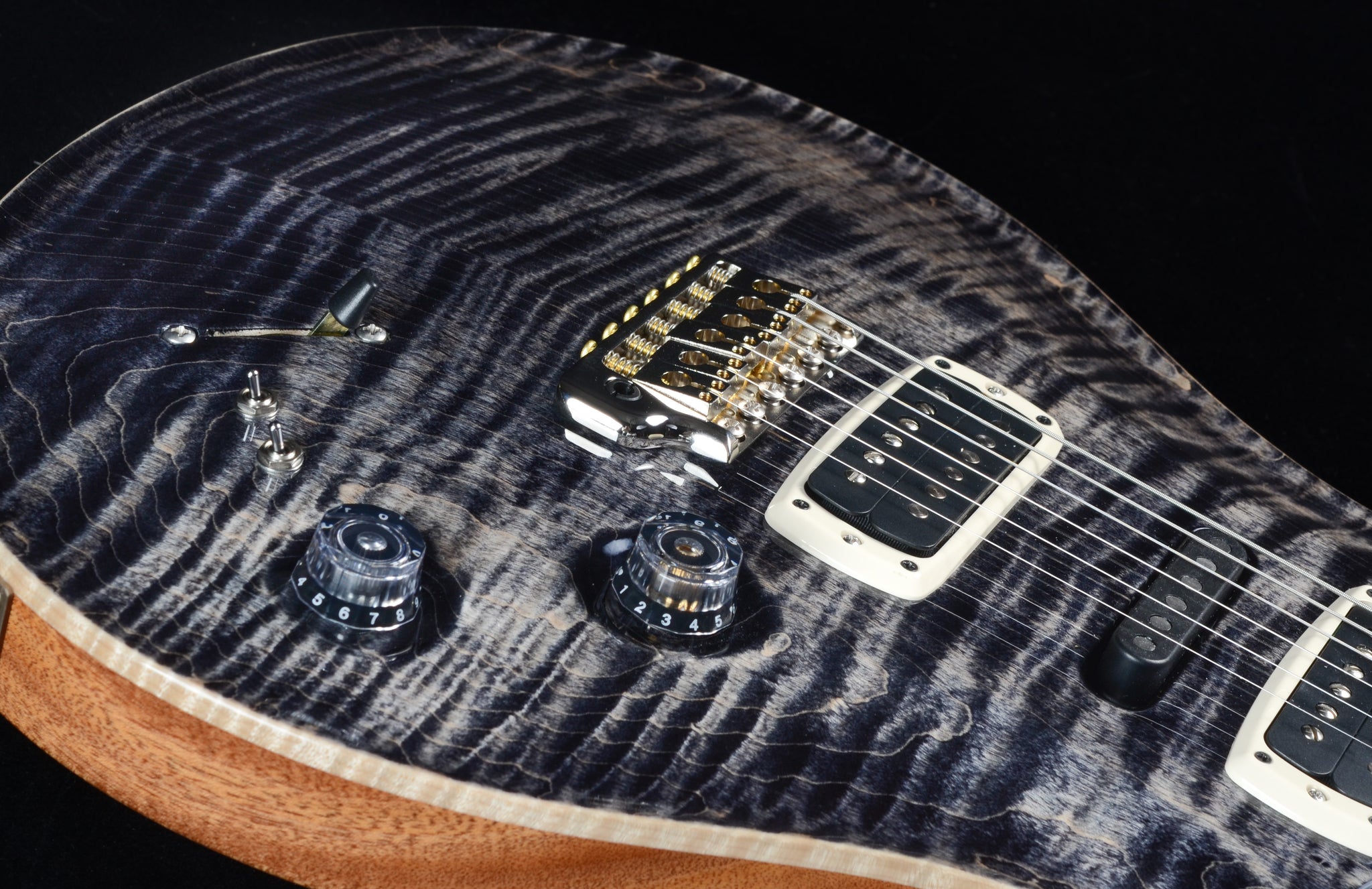

• Controls: Volume and Push/Pull Tone Controls with 5-Way Blade Pickup Switch and Two Mini-Toggle Coil Split Switches
• Strings: PRS Signature 10-46
• Case: Hardshell Case
