RockBoard Mini Mounting MOD TRS - Side Access
RockBoard
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Regular price $16.99

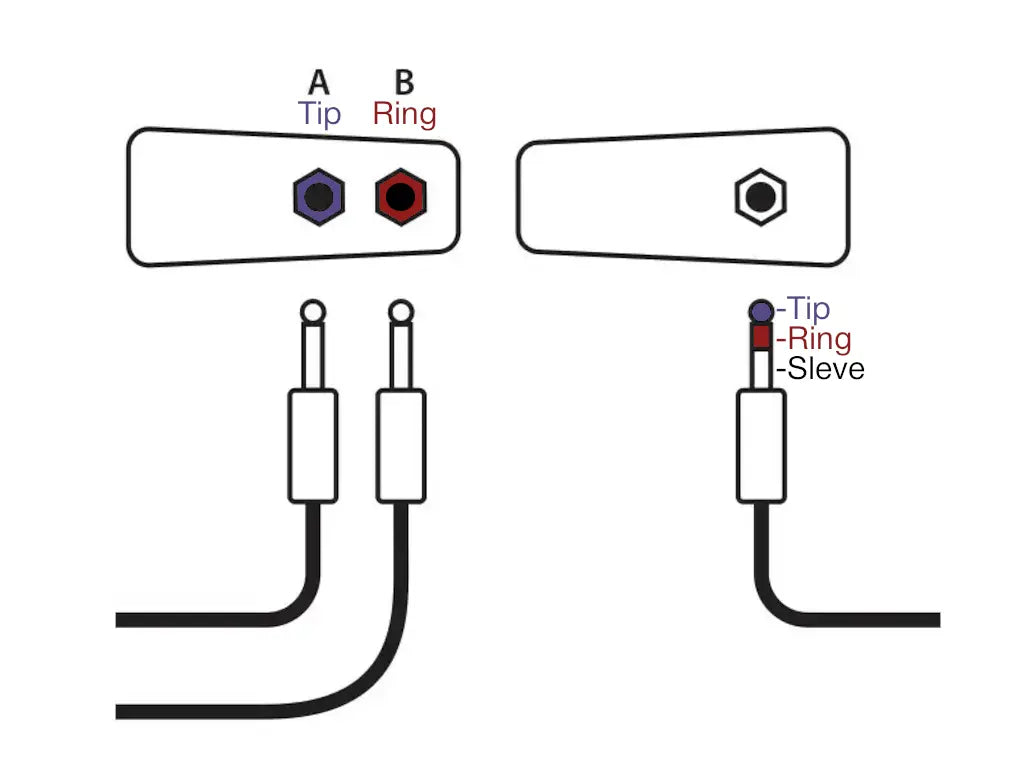

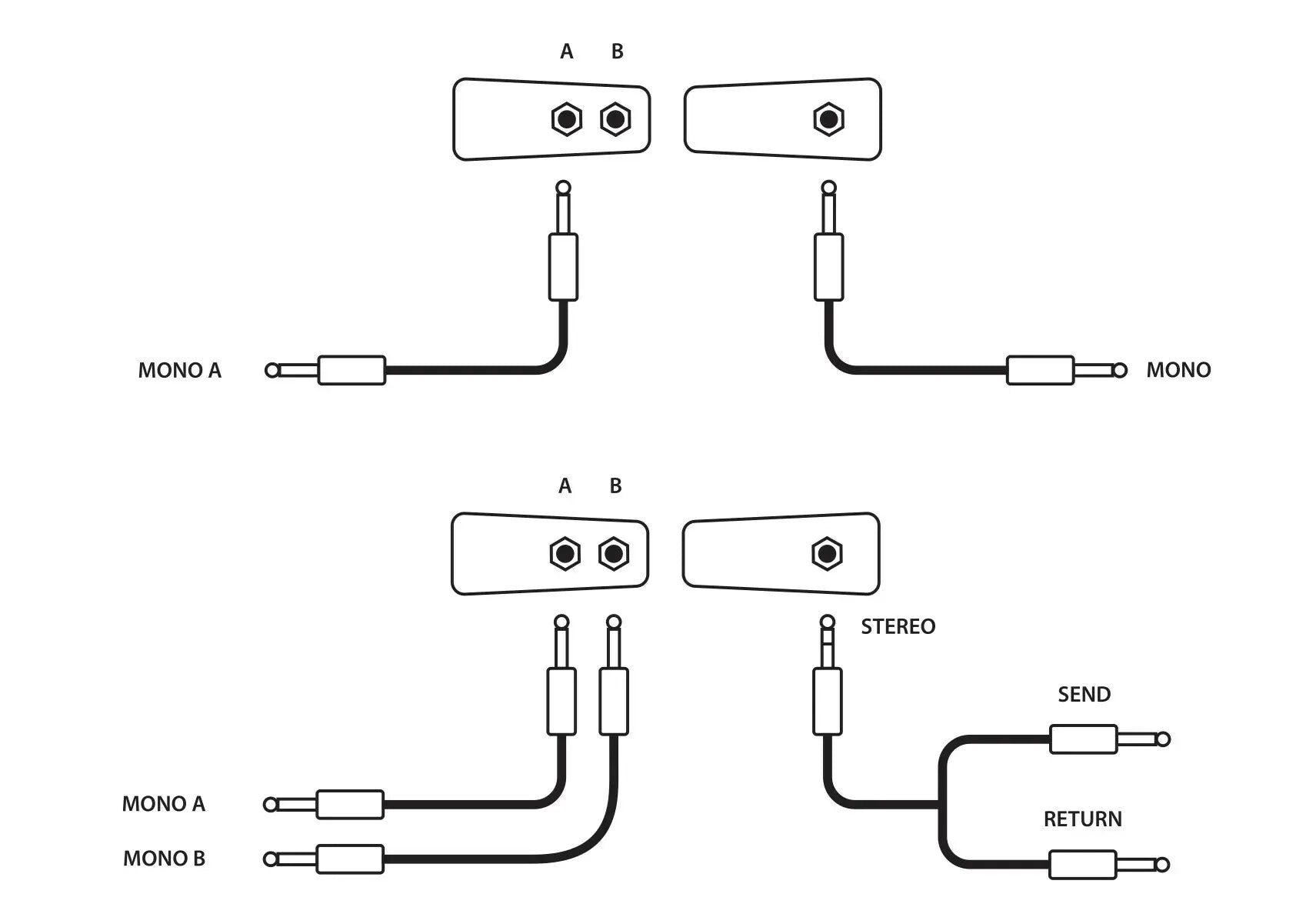

The Mini Mounting MOD TRS provides convenient access to the signal supply of the pedals on the board. It fits perfectly into the mounting holes of the RockBoard® LED Light and is a versatile, clean mounting solution for all RockBoard® series pedalboards. Central access to the signal supply is provided by a 6.3 mm TRS stereo jack. Since the TRS jacks are pass-through jacks, it is also possible to route signals in the opposite direction to external pedals, such as a Wah. Using TRS stereo jacks also makes it easy to implement "send/return" applications (A- = tip and B- = ring).
Specs:
- Mini MOD TRS
- mounting solution for RockBoard pedalboards
- fits in the mounting hole for the RockBoard LED Light
- 1 x 6.3mm (1/4") TRS jack to 2 x 6.3 mm (1/4") TRS jack
- no drill holes are necessary
- dimensions: (W x D x H): 25 - 20 x 35 x 70 mm - 63/64"- 25/32" x 1 3/8" x 2 3/4"
- weight: 50 g / 0.11 lbs

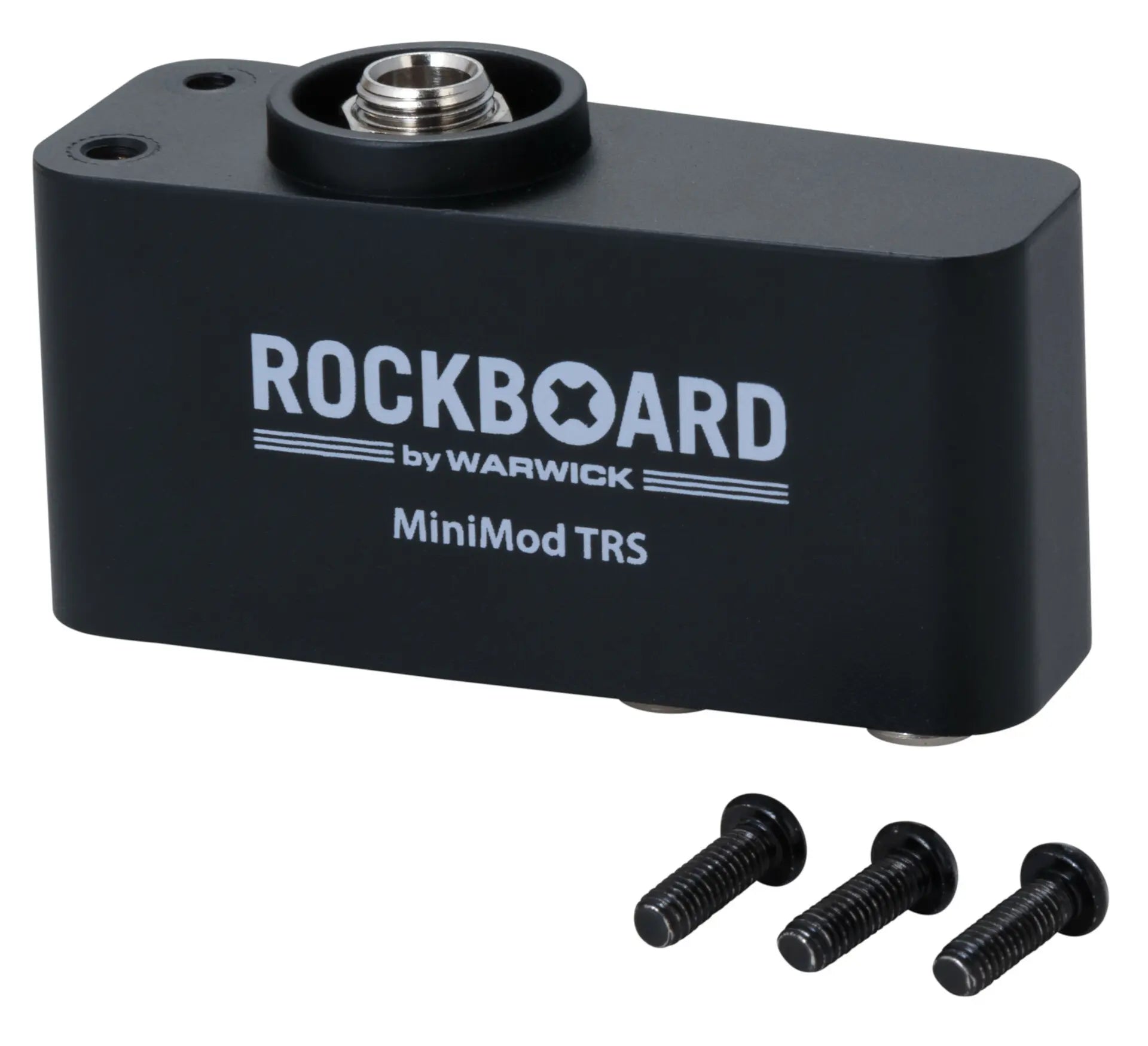

- incl. mounting screws
