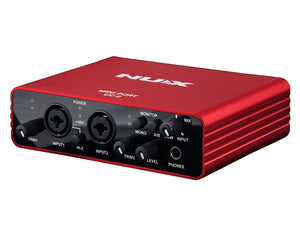

NuX UC-2 Mini Port USB Audio Interface

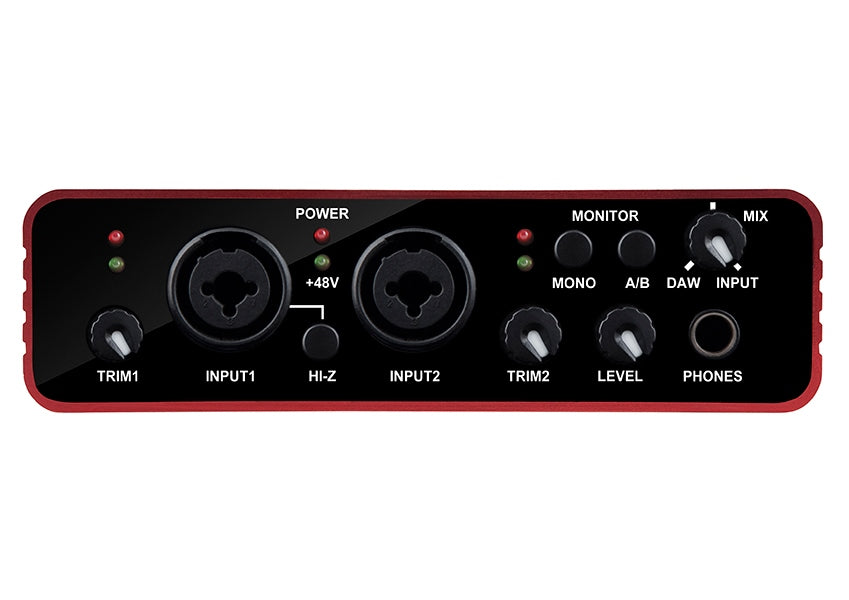

UC-2 Mini Port USB audio interface is ultra high performance device for professional musician - compatible with WINDOWS and MAC computers. It's equipped with two combo jacks of mic and Hi-Z instrument and two line level inputs, plus four analog output jacks. 192kHz/24bit and ultra low latency driver offer premium performance. With its compact design and stable operation, mini port is the perfect audio interface for musicians's requirement.

Features

• Compact and convenient USB audio interface

• Combo jacks with Hi-Z swith for mic and high impedance input

• Stereo headphones output 192KHz/24bit ultra high resolution

• Low latency ASIO (Windows) and Core Audio (Mac) drivers MIDI in and out.

Mic Inputs (A/D)

• Input Impedance: 2.7k ohm unbalanced, 5.4k ohm balanced

• Max Input Level: +24dBu @ min gain, -40dBu @ max gain

• Channel-to-Channel Crosstalk:

• SNR: -101dB, A-weighted

• THD+N: 0.005% [-86dB] @ -1dBFS. 1kHz

• Frequency Response: 20hz to 20kHz, +/-0.1dB

• Preamp Gain: >40dB

Instrument Inputs (HI-Z mode)

• Input impedance: >470k ohm, unbalanced

• Maximum Input Level: 4+dBu

Line Inputs (A/D)

• Input impedance: 20k ohm, balanced and unbalanced

• Maximum Input Level: 4+dBu balanced / +1.9dBu unbalanced

Line Outputs (D/A)

• Output Impedance: 150 ohm, unbalanced

• Maximum Output Level: +1.8dBu, unbalanced

• Channel-to-Channel Crosstalk:

• SNR: -103dB, A-weighted

• Dynamic Range: -103dB, A-weighted

• THD+N: 0.005% [-86dB] @ -1dBFS. 1kHz

• Frequency Response: 20hz to 20kHz, +/-0.1dB @ 48kHz sample rate

Headphone Output (D/A)

• Maximum Ouput: -2.5dBu @THD<0.05% into 32 ohm

• Working Range: 32 ohm - 600 ohm

Digital Signal Processing (DSP)

• Sampling Frequency: 44.1kHz 48kHz 88.2 kHz 96kHz 176.4kHz 192kHz

• A/D converter: 24bit

• D/A converter: 24bit

• Signal Processing: 32bit

Other

• Power Requirements: 12V DC, 1A (center positive)

• Power Consumption: 450mA

• Dimensions: 155mm (D) x 136mm (W) x 52mm (H)

• Weight: 500g

• Accessories: USB cable, Power Adaptor, Owner's Manual
